Ceramic Materials

 As with the microwave processing of polymers, the microwave processing of ceramic materials has reached a high degree of maturity. Early work in the field was principally concerned with the removal of solvents from the solid samples,93-96 making use of their dielectric loss properties. It is estimated that below ~5% water content, the microwave drying of materials is more energy efficient than conventional drying methods. Above this level it seems that a hybrid system, incorporating both methods at different stages in the process is most efficient.97 In many cases, microwaves offer superior drying properties to those of thermal techniques, since the power may be more evenly distributed through the sample, leading to more even drying profiles;

 Once dry, however, it was apparent that many of the compounds were themselves capable of effective dielectric heating.98 Furthermore, rapid progress was made and the strong dielectric loss properties of a large number of oxides,99,100 sulphides,101 and glass ceramics102 was soon recognised. By the use of a screened thermocouple (see Chapter 3) the heating characteristics of over one hundred and fifty compounds were measured,103, 104 representative examples of these data105 are shown in Table 1. It is of particular interest to the author that the metal samples - aluminium and nickel - heat rapidly under these conditions. The rate of heating in these samples is the consequence of a number of factors, and has been discussed in a number of his publications



 A*

B*

Material

Temp/oC

Time/Min

Material

Temp/oC

Time/Min

Al

577

6

CaO

83

30

C

1283

1

CeO2

99

30

Co2O3

1290

3

CuO

701

0.5

CuCl

619

13

Fe2O3

88

30

FeCl3

41

4

Fe3O4

510

2

MnCl2

53

1.75

La2O3

107

30

NaCl

83

7

MnO2

321

30

Ni

384

1

PbO2

182

7

NiO

1305

6.25

Pb3O4

122

30

SbCl3

224

1.75

SnO

102

30

SnCl2

476

2

TiO2

122

30

SnCl4

49

8

V2O5

701

9

ZnCl2

609

7

WO3

532

0.5

*A - 25g samples , 1kW irradiation with a 1L vented water load ; B - 5-6g samples , 500W irradiation



 Table 2Heating characteristics of some solids under microwave irradiation





 The single most important and widely investigated application of microwaves in ceramic processing has been in the area of sintering. Initial studies106 were carried out using a 400W microwave tuned waveguide applicator to effect the sintering of alumina and silica rods at >1700oC. Since then, a wide range of materials have been processed in this way, Table 2 summarises a selection of the work which has been published.



 Material

Dimensions

Methodc

Temp/oC

Time/sec

Density/%

Ref.

Al2O3

pellet

M

1500

-

95

107

Al2O3+ 0.1 MgO

100g pellet

M28

1200

3600

98.2

108

Al2O3+ 0.1 MgO

10mm pellet

M60

1450

320

77

109

2ZrO2 + Y2O3

pellet

M

-

-

93.3

110

SrTiO3

pellet

M

1300

430

98

107

B4C

10mm cylinder

M

2000

450

95

111

SiC+0.6B+4C

4.5mmrod

M

2200

-

-

112

Al2O3+ 20%YSZa

12mm pellet

M

1650

3200

>99

113

Ba ferrites

13mm discs

M

1230

2700

-

114

YBa2Cu3Ox

pellets

M

960

36000

>95

115

TiB2+ 3%CrB2

pellet

M

2100

1800

98

116

Y-TZPb

rod

S

1450

~1000

98.5

117

a Yttria stabilised zirconia; b Yttria stabilised tetragonal zirconia polycrystals; c M =multimode cavity, S=single mode cavity, Superscript indicates frequency (GHz) if other than 2.45GHz.



 Table 2 Sintering of ceramics under microwave irradiation



 Heating at 2.45GHz may lead to inhomogeneous heating in some volumes of the material during the sintering process. In the microwave sintering of calcium vanadium garnet ferrites, for example, temperatures 100&#176C above the surface temperature were registered in the sample core.118 A similar result in the microwave treatment of Y-TZP/Y-TZP - Al2O3 samples led to the over-sintering of the sample core.117 When sample homogeneity is of paramount importance, this is clearly undesirable. For this reason, higher frequencies of 28GHz, may be used to smooth out these inhomogeneities.119 Because the wavelength ([lambda]~1cm) in such work is smaller than the sample, it was reasoned that the high field regions leading to inhomogeneous heating would be closer to one another. Ideally, heat conduction from these points through the sample would be rapid enough to give more even sintering.

 Often, it is not sufficient to heat only the sample, and the importance of using 'caskets' has been studied.120 Containing the sample in a close-fitting material (the casket) with suitable properties allows high temperatures to be reached rapidly, and maintained, and improves the quality of the sintered product. The casket materials must be chemically inert, and may be either microwave absorbing or transparent. The role of transparent materials, for example boron nitride, is simply to act as insulation, retaining the microwave energy which has been converted to heat by the sample. Where the sample has poor dielectric properties at room temperature, such as are observed with alumina, a microwave absorbent material such as zirconia or hafnia may be used to initiate the heating. The advantage of zirconia in particular is that its dielectric heating properties fall off at >=1000oC and allow direct microwave heating of the sample.

 It has been noted that materials sintered by microwave heating display markedly higher densities for a given reaction temperature and time than do conventionally treated samples, the effect being most evident at low temperatures/sintering densities.113 For a sample of alumina under 700W irradiation, a particular density may be reached at 100oC lower than that required by conventional heating (Figure 1). In other systems, differences as high as 300-400oC have been reported.121 From studies of the rate of densification, it has been suggested that these differences arise from a reduction in the activation energy required for grain boundary diffusion under microwave heating, although a precise mechanism has not yet been fully developed.

 Despite the technological success of microwave sintering, economic analyses suggest that it does not yet offer energy savings.122 Given that the energy efficiency for conversion of natural gas to microwave power may be as low as 15%, unless microwave sintering can offer improved products or process simplification, it may remain uneconomic for most sintering applications.



sintering densities vs. temperature

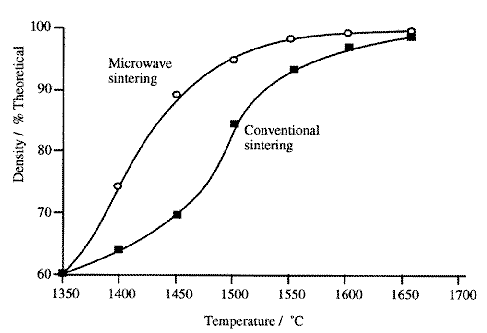

Figure 1 Microwave and conventional sintering densities as a function of temperature113



 Going beyond sintering, ceramic materials have been successfully melted using microwave heating. During the microwave drying of oxide samples, it was noted that UO2 could be successfully heated to its melting point of >2600&#176C using microwaves.99 Many other examples of melting have been reported.98, 123-125

 Microwave joining has been achieved using a number of ceramic materials. Using a single mode cavity, Palaith et al .126 butt welded two mullite rods together at 1300&#176C in approximately 10 minutes. Similarly, joining has been reported using either Al2O3 or Si3N4, the latter in an inert atmosphere.127 Interestingly, although it was possible join impure samples (92% and 96% purity respectively) of the ceramics to themselves directly, the pure materials could not be joined without the presence of a thin layer of impure material in the join. This illustrates the importance of impurities in the low temperature microwave heating properties of these compounds (cf. Tan d for 97% pure and 99+% pure alumina in Figure 1.5).
