Microwave Heating Mechanisms

Contents

Introduction

Microwaves lie in the region of the electromagnetic spectrum between millimetre waves and radio waves. Specifically, they are defined as those waves with wavelengths of between 0.01 and 1 metre, corresponding to frequencies of between 30 and 0.3GHz (Figure 1).

Figure 1 The electromagnetic spectrum

Microwave RADAR equipment operates at the lower wavelengths (0.01 - 0.25 m) of this band, and much of the band is used for telecommunications. In order to avoid interference with these uses, the wavelengths at which industrial and domestic microwave apparatus may operate is regulated at both national and international levels. In the majority of countries, 2.450 (+/- 0.050) GHz is the major operating frequency for this purpose, although other frequency allocations exist (Table 1). Where apparatus is built to operate outside these bands, efficient shielding must be used to prevent radiation leakage. All domestic ovens operate at 2.45GHz, and their popularity in recent years has resulted in progressively cheaper microwave sources at this frequency.

It is important to note that microwave heating is quite distinct from microwave spectroscopy. The latter is a quantum phenomenon in which photons of particular energies (and therefore frequencies) excite the rotation levels of gas phase molecules. Whilst the absorption of microwaves in solid and liquid samples is frequency dependent, it is by no means quantised and does not depend upon the direct absorption of microwave photons. Rather, the material behaves as though reacting to a high frequency electric field, and so may be subjected to classical analysis.^2-6 Details of this analysis are beyond the scope of this introduction, although some of its chemically significant aspects will be introduced and discussed in the following sections.

Dielectric polarisation

The inability of partially bound charges to follow the rapid changes in a high frequency electric field gives rise to one mechanism of microwave heating. The total polarisation (a_t) of the material arising from the displacement of charges may be expressed as the sum of a number of components

a_d results from the reorientation of polar molecules or other permanent dipoles in the material. As the timescale for its operation is of the order of those associated with microwaves, this is the most important of the polarisation phenomena in relation to microwave heating, and is discussed in some detail below. The role of the interfacial polarisation (Maxwell - Wagner) effect a_i, which results from interfacial phenomena in inhomogeneous materials is limited at microwave frequencies, and in general its contribution is limited. In those cases where it is thought to be important, theoretical studies are impossible due to the large number of variables involved.

The complex dielectric constant, ^*, completely describes the dielectric properties of homogeneous materials and is expressed as the sum of real and complex dielectric constants:

* = ' + i "

A further quantity, the loss angle d, is also commonly used in the literature, and is more usually given in the form of its tangent. It is related to the complex dielectric constant by;

Tan = " / '

Magnetic polarisation may also contribute to the heating effect observed in materials where magnetic properties exist, and a similar expressions for the complex permeability of such materials may be formulated. Although such cases are relatively uncommon, a familiar example of its importance is in the microwave heating of Fe₃O₄.

Dipolar Polarisation

Dipolar polarisation is the phenomenon responsible for the majority of microwave heating effects observed in solvent systems. In substances such as water, the different electronegativites of individual atoms results in the existence of a permanent electric dipole on the molecule. The dipole is sensitive to external electric fields, and will attempt to align with them by rotation, the energy for this rotation being provided by the field. This realignment is rapid for a free molecule, but in liquids instantaneous alignment is prohibited by the presence of other molecules. A limit is therefore placed on the ability of the dipole to respond to a field, which affects the behaviour of the molecule with different frequencies of electric field.

Under low frequency irradiation, the dipole may react by aligning itself in phase with the electric field. Whilst some energy is gained by the molecule by this behaviour, and some is also lost in collisions, the overall heating effect is small. Under the influence of a high frequency electric field, on the other hand, the dipoles do not have sufficient time to respond to the field, and so do not rotate. As no motion is induced in the molecules, no energy transfer takes place, and therefore, no heating.

Between these two extremes, at frequencies which are approximately those of the response times of the dipoles, is the microwave region. The microwave frequency is low enough that the dipoles have time to respond to the alternating field, and therefore to rotate, but high enough that the rotation does not precisely follow the field. As the dipole reorientates to align itself with the field, the field is already changing, and a phase difference exists between the orientation of the field and that of the dipole. This phase difference causes energy to be lost from the dipole in random collisions, and to give rise to dielectric heating.

For any material, both the real and complex dielectric constants will vary with frequency. The variation of ' and " with frequency for water is shown in Figure 2.⁷

Figure 2 Variation of ' and " with frequency for water⁷

The range of frequencies over which the dielectric loss is non-zero, indicating that microwave absorption occurs, is relatively large. This is in contrast to the linewidths of quantum spectroscopic absorption, which are typically of the order of nanometres.

There is a clear maximum in the dielectric loss for water at a frequency of approximately 20GHz, the same point at which the dielectric constant ' goes through a point of inflexion as it decreases with increasing frequency. The 2.45GHz operating frequency of domestic ovens is selected to be some way from this maximum in order to limit the efficiency of the absorption. Too efficient absorption by the outer layers would inevitably lead to poor heating of the internal volume in large samples. This introduces the concept of skin depth or penetration depth, a subject which will be more fully discussed for conduction losses in Chapter 3, although the general principles discussed there apply to dielectric loss also.

In his theoretical expressions for ' and " in terms of other material properties, Debye^{6, 8} formed the basis for our current understanding of dielectrics. The dielectric constants, ' and " are dependent on both frequency and temperature, the first of which is expressed explicitly in the Debye equations whilst temperature is introduced indirectly though other variables;

where ^* and ^sare the dielectric constants under high frequency and static fields respectively. Since infra-red frequencies are often regarded as infinite for most purposes, ^* results from atomic and electronic polarisations, whilst ^s results from the sum of all the polarisation mechanisms described in a lter section. The relaxation time, [tau], was derived by Debye from Stoke's theorem;

Figure 3. Debye expressions for ' and " calculated as a function of [omega][tau].

In solids, the molecular dipoles are no longer free to rotate as they are in liquids, but are restricted to a number of equilibrium positions, separated by potential barriers. Theoretical treatments of this behaviour have been formulated and are similar to those developed for liquids. The simplest model for this behaviour assumes that there are two potential wells separated by a potential barrier of energy W. This represents the two possible orientations of the dipole. Through statistical mechanics, it is found that the relaxation time is related to the potential barrier by;

Where A is a temperature dependent constant. In fact, most dipolar solids exhibit extremely small dielectric losses since W tends to be extremely large. Water-free ice, for example does not heat significantly under microwave irradiation.

Maxwell - Wagner (Interfacial) polarisation

Where a dielectric material is not homogeneous, but consist of inclusions of one dielectric in another, it is still possible to treat the material theoretically. If the dielectric properties and geometry of the inclusions are known, it is possible to arrive at expressions for the dielectric behaviour of the bulk sample. The reverse problem - that of determining the dielectric properties of the components from that of the system - is generally insoluble except in the simplest of cases.

The most basic geometrical situation was considered by Maxwell.⁹ This consisted of a plate capacitor of n dielectric sheets of dielectric properties and conductivities _{1 1}, _{2 2}, ..._{n n}. This resulted in differential equations relating the field across the dielectric as a function of the current though the strata. Maxwell showed his model to be capable of explaining the observed data for dielectric relaxation in such systems.

By considering small spheres with material properties _{2 2} dispersed so as to preclude electrostatic interaction with one another through a medium with properties _{1 1}, Wagner was able to develop Maxwell's analysis further.¹⁰ This analysis was further developed by Sillars,¹¹ who simplified the model by assuming that the matrix material behaved as a perfect dielectric (i.e. ₁ = 0). The inclusions are spheroids with axis a in the field direction, and with b and c equal to one another. The geometry is wholly described by two variables, q, the volume fraction of dielectric 2, and the axial ratio a/b. The conducting inclusions behave as point dipoles in the dielectric matrix, and a full analysis yields relations similar to the Debye equations;

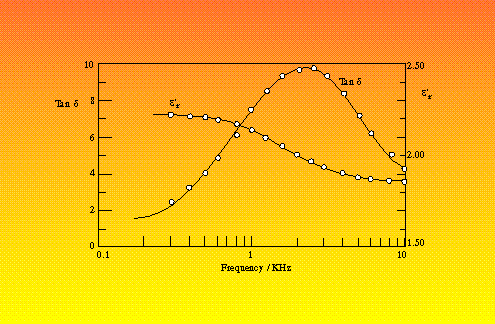

Sillars includes the dimensionless quantity, q, which is a function of the ratio a/b. The non-linear variation of this quantity implies that little can be deduced about the dielectric properties of a heterogeneous material unless the shapes of the inclusions are known. Agreement of the theoretical models with real systems has been demonstrated by the inclusion of 3% copper phthalocyanine in paraffin wax.¹² At higher concentrations, account must be made of interparticle electrostatic interactions and attempts to do this have shown reasonable agreement with up to 30% water droplets in woolwax .¹³ and with 27.5% nitrobenzene in polystyrene ¹⁴ (Figure 4).

Conduction effects

In addition to the dielectric losses describe above, many materials may also shown losses through conduction under microwave irradiation. The complex dielectric constant may be expressed to take account of these losses by including a separate conduction term :

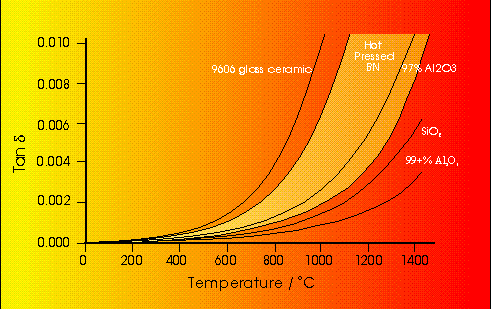

Figure 5 Temperature dependence of Tan[delta] for a range of ceramics ¹⁵

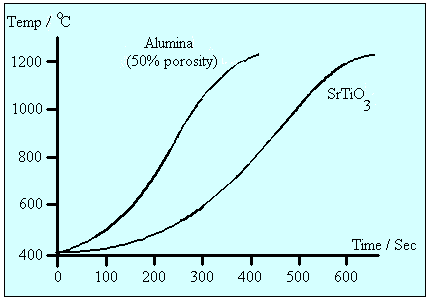

Figure 6 Thermal runaway in materials under microwave irradiation¹⁶

Heating in metals and metal powders depends heavily upon conduction losses, and the important aspects of this phenomenon is treated in greater depth elsewhere

References

1. N.H. Williams. J. Microwave Power 2, 123 (1967).

2. V. Daniels. Dielectric Relaxation , Academic Press, London (1967).

3. N.E. Hill, W.E. Vaughan, A.H. Price & M. Davies. Van Nostrand Reinhold Co. London (1969).

4. J.B. Hasted. Chapman Hall (1973).

5. H. Fröhlich. Theory of Dielectrics , Oxford University Press, London (1958).

6. P. Debye. Polar Molecules , Chemical Catalog, New York (1929).

7. A. Von Hippel. Dielectric Materials and their Applications MIT Press, (1954).

8. P. Debye. Phys. Zs. 36, 100 (1935).

9. J.C. Maxwell. A Treatise on Electricity and Magnetism Dover Publications, Dover (1954).

10. K.W. Wagner. Arch. Elektrotech. 2, 371 (1914).

11. R.W. Sillars. J. Proc. Inst. Elect. Engrs. 100, 199 (1937).

12. B.V. Hamon. Aust. J. Phys. 6, 304 (1953).

13. J.S. Dryden & R.J. Meakins. Proc. Phys. Soc. B. 70, 427 (1957).

14. M.M.Z. Kharadly & W. Jackson. Proc. Inst. Elect. Eng. 100, 119 (1953).

15. W.H. Sutton. Am. Ceram. Soc. Bull. 68, 376 (1989).

16. V. Kenkre, L. Skala, M. Weiser & J. Katz. Journal Of Materials Science 26, 2483-2489 (1991).

17. G. Kriegsmann. in Journal Of Applied Physics 1960-1966, ( 1992).
